The Socket Weld Gate Valve is a resilient-seated gate valve with non-rising stem and socket-weld ends, designed for direct welded connection into the pipeline without flange sets — a compact and leak-tight solution where installation space is limited and joint reliability is critical. Like the rest of our gate valve series, it is primarily used in water supply and sewage systems: it controls the flow of water, prevents water loss, distributes the water supply and isolates pipeline sections for maintenance. The wedge is fully encapsulated with EPDM for a tight seal and low operating torque, and the fusion-bonded epoxy coating (≥ 250 µm, inside and outside) protects the valve in buried and submerged installations.
Share：
Sealing system: resilient seated in accordance with EN 1074-1/-2 (DIN 3352 – 4B)
Valve standard: EN 1074-1/-2, AWWA C509 / C515 (WRAS certificate, NSF test report and EN 1074 certificate available)
Face-to-face length: acc. to EN 558-1, series 15 (F5)
Socket-weld ends — rigid, leak-tight welded joints, no flange sets or bolt kits required
Non-rising stem (NRS) design with square operating nut for tee-key operation
Maintenance-free and corrosion-resistant stem sealing with triple O-rings
Low operating torque thanks to fully guided wedge and rubber-encapsulated seating faces
Pressure tested acc. to EN 12266-1 / API 598
Suitable for potable water — WRAS certificate and NSF test report available
Working temperature: ≤ 80 °C; working pressure: PN 10 / PN 16; DN 50 – DN 300

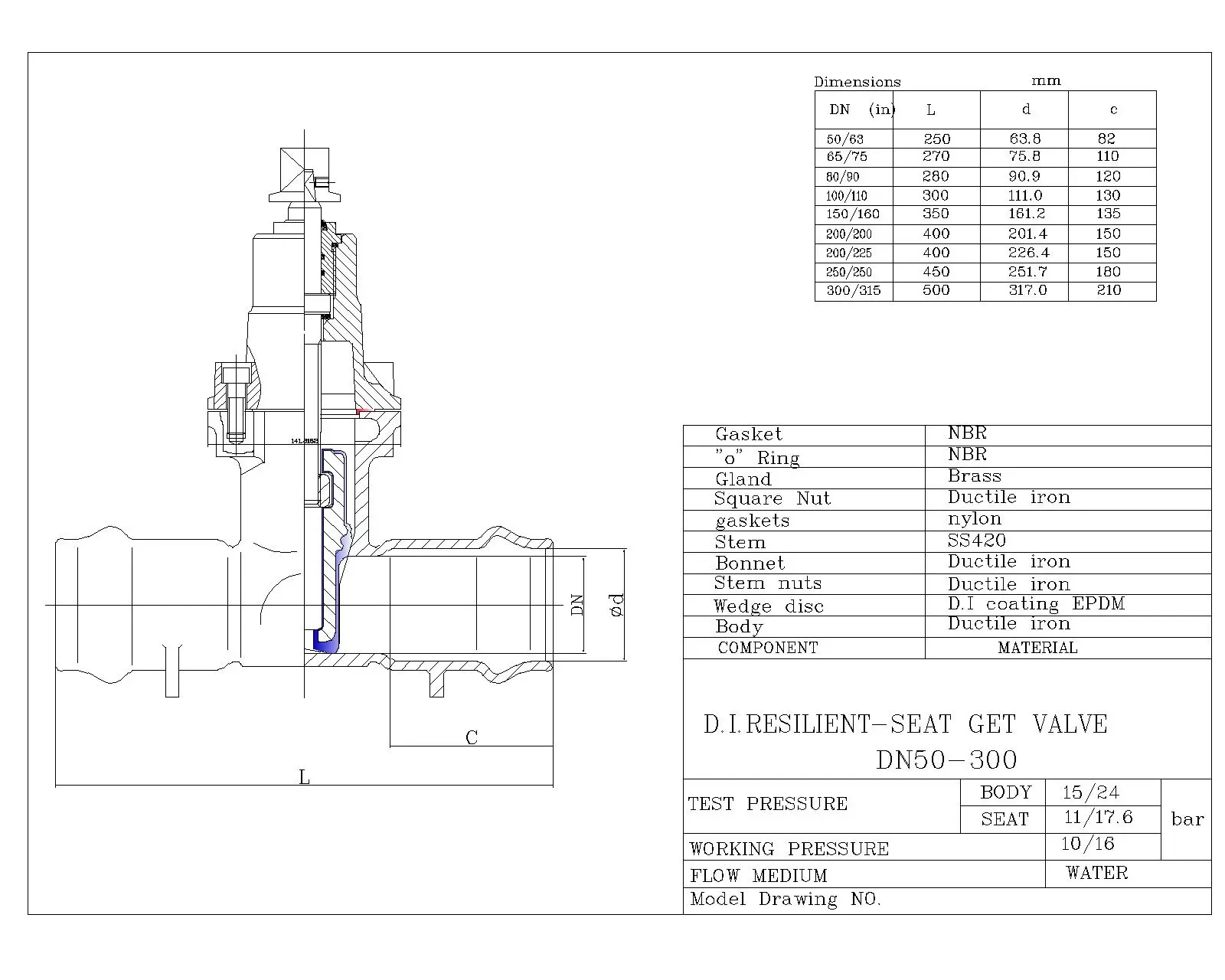

| Part | Material |
| Body | Ductile iron EN-GJS-450-10 (GGG-40/45) — confirm with casting spec |
| Bonnet / Cover | Ductile iron EN-GJS-450-10 |
| Wedge (Disc) | Ductile iron, fully encapsulated with EPDM vulcanized |
| Stem | Stainless steel 1.4021 — confirm grade |
| Stem nut | Copper alloy / Brass |
| Bonnet bolts & nuts | Stainless steel A2 (DIN EN ISO 3506) |
| O-rings | NBR / EPDM |
We help distributors, contractors and engineering teams match the right valve configuration to pressure, medium, standards and site conditions.
Sewage treatment is also vital, the importance of sewage treatment system is mainly reflected in the improvement of water quality, protection of the ecological environment, promote the water cycle system, improve the efficiency of water use,save purewater resources,reduce sewage and other costs, as welas a significant economic benefits.
Continuous water supply is a key part of focus in every countTV and valves also play a vital role in water supply system. Valveare installed in water supply systems to play an important role in controlling the flow of water, preventing water loss, distributing the watersupply and isolating some pipelines.
From raw casting to final pressure testing, our team follows documented processes and precise inspection standards. The result is repeatable performance you can specify with confidence.
30-40 days delivery, fast aging, and perfect after-sales service, one year warranty
Produced in strict accordance withnational standards, and has a numberof certification certificates
Can be customized according tocustomer size, more independent, witha stable production department
Exports to Southeast Asia, the MiddleEast and many countries all the yearround, and has a more accurate graspof the market
From the raw embryo to the finished product, strictly in accordance with the national standards of production and adhere to the strict control of each production step, committed to "zero defect"
With R & D and product processing center, through precision CNC and perfect technology and technology, strictly in accordance with the standard production, to ensure the stability and reliability of products
There are many application scenarios, and we are constantly innovating and expanding
